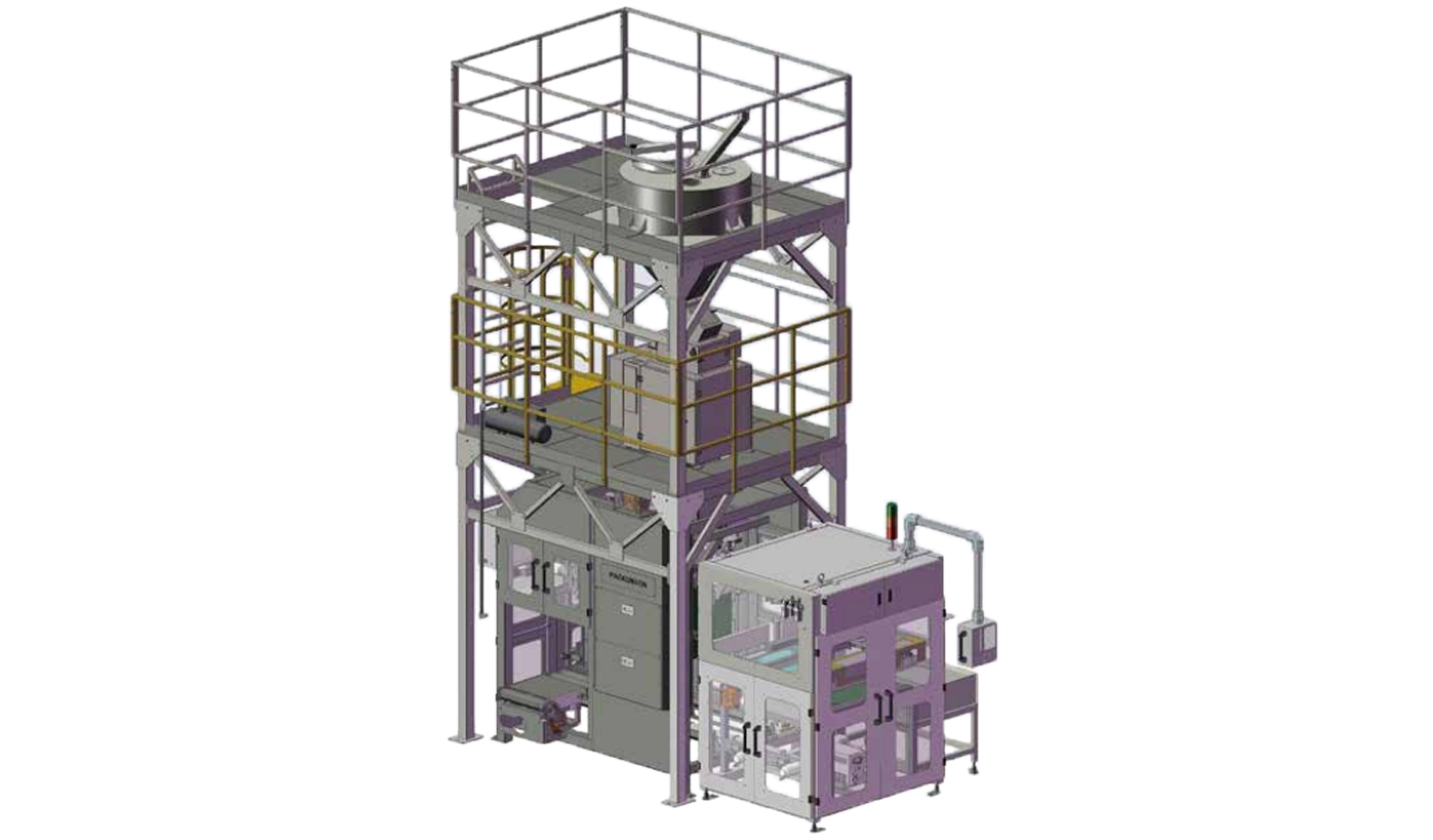

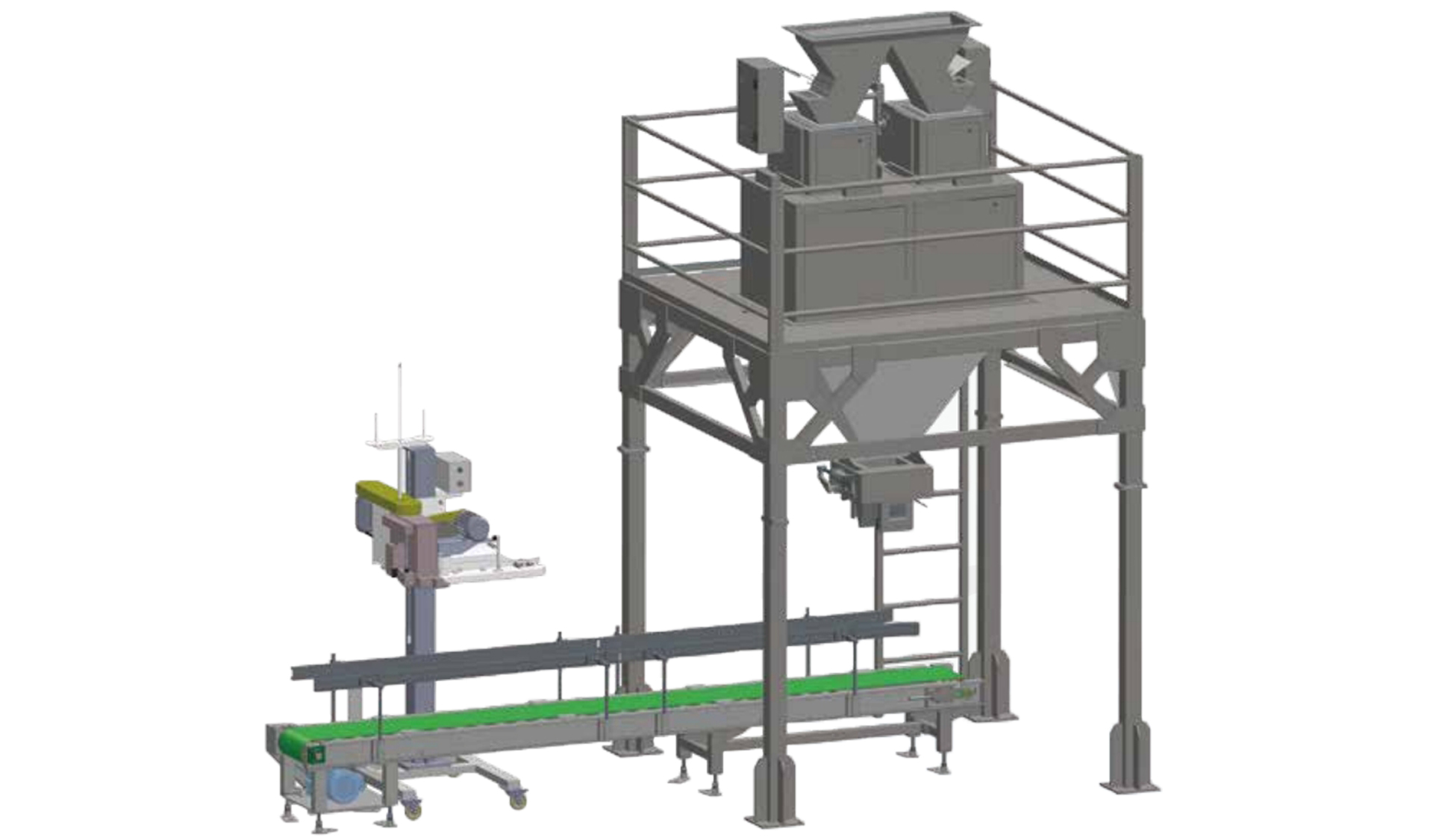

重袋全自动抽真空包装机组

适用范围Scope of application

食品添加剂、医药辅料、生物化工等行业的颗粒料全自动抽真空包装及装箱。

Food additives, pharmaceutical excipients, bio-chemical and other industries of granular material automatic vacuum packaging and packing.

功能特点Funcational characteristics

1、可选配远程诊断功能,易于维护。

Optional remote diagnostic function, easy to maintain.

2、采用伺服电机,安全可靠,快速稳定。

Adopting servo motor, safe, reliable, fast and stable.

3、具有故障自动报警功能,根据故障提示可快速排除故障。

Equipped with automatic fault alarm function, the fault can be quickly eliminated according to the fault prompt.

4、友好的人机操作界面,操作简单便捷。

Friendly human-machine interface,simple and convenient operation.

5、紧密型夹袋设计,多个除尘口合理布局,避免扬尘。

Tight clamp bag design, multiple dust removal ports arranged reasonably to avoid dust.

6、称量、上袋、开袋、下料、抽真空、定型、封口等工艺流程完全自动化。

The process flow of weighing, bagging, opening, discharging,vacuuming,shaping,sealing,etc.is fully automated.

技术参数Technical parameters

1、型号：FAG-100FA

Model：FAG-100FA

2、包装范围(kg)：25-50

Packing range(kg)：25-50

3、包装速度(bag/h)：≥60*

Packing speed(bag/h)：≥60*

4、称重精度：±0.1%~±0.2%

Weighing precision：±0.1%~±0.2%

5、包装袋规格(mm)：袋宽-500~750;袋长-700~950(可定制)

Bag specifications(mm)：Bagwidth-500~750;Baglength-700~950(Customizable)

6、包材材料：PE袋

Packing material：PE Bag

7、环境温度：0~40℃

Ambient temperature：0~40℃

8、电源,耗电：AC380V 50Hz,7.5kW

Power supply,power consumption：AC380V 50Hz,7.5kW

9、气源,耗气：0.4~0.6MPa,30Nm³/h

Gas source,gas consumption：0.4~0.6MPa,30Nm³/h

10、外形尺寸(mm)长X宽X高：5000x2500x6000

Overall dimension(mm)L×W×H：5000x2500x6000
